QLXD Series Specification Sheet

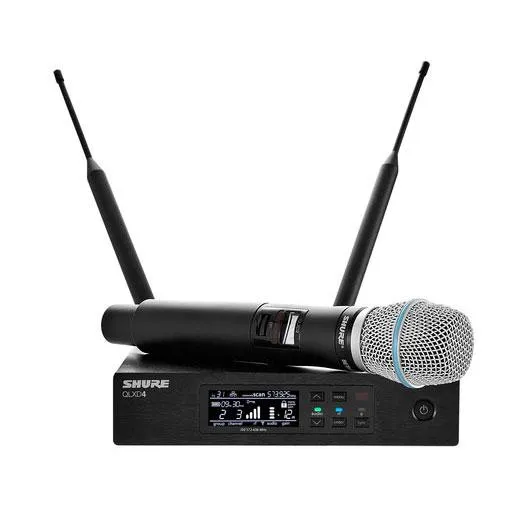

Shure QLXD24/B87A wireless handheld microphone system features a BETA 87A® wireless handheld microphone transmitter, QLXD24/B87A combines professional features with simplified setup and operation.

Specific Configuration:

BETA 87A microphone, QLXD4 digital wireless receiver, power supply, (2) AA batteries, (2) 1/2 wave antennas, (2) BNC cables, (2) bulkhead adaptors, rackmount kit, zipper bag and user guide.

SM58 Features:A handheld wireless microphone transmitter is ideal for wireless presentations spaces, music venues, and houses of worship.

QLXD4 Features:

With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 digital wireless receiver combine features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters
Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench® software integration for remote control of receiver setting from a PC or Mac. Remote monitoring and control from iOS devices alsom is available with the ShurePlus£ Channels Mobile App.

• 64 MHz tuning bandwidth (region dependent)
• H50 Frequency Range: 470-534 MHz
• Digital predictive switching diversity ensure solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable 1/2 wave antennas
• Mic/line switcable XLR output
• 1/4" Instrument output
• Durable aluminum construction with brushed finish
