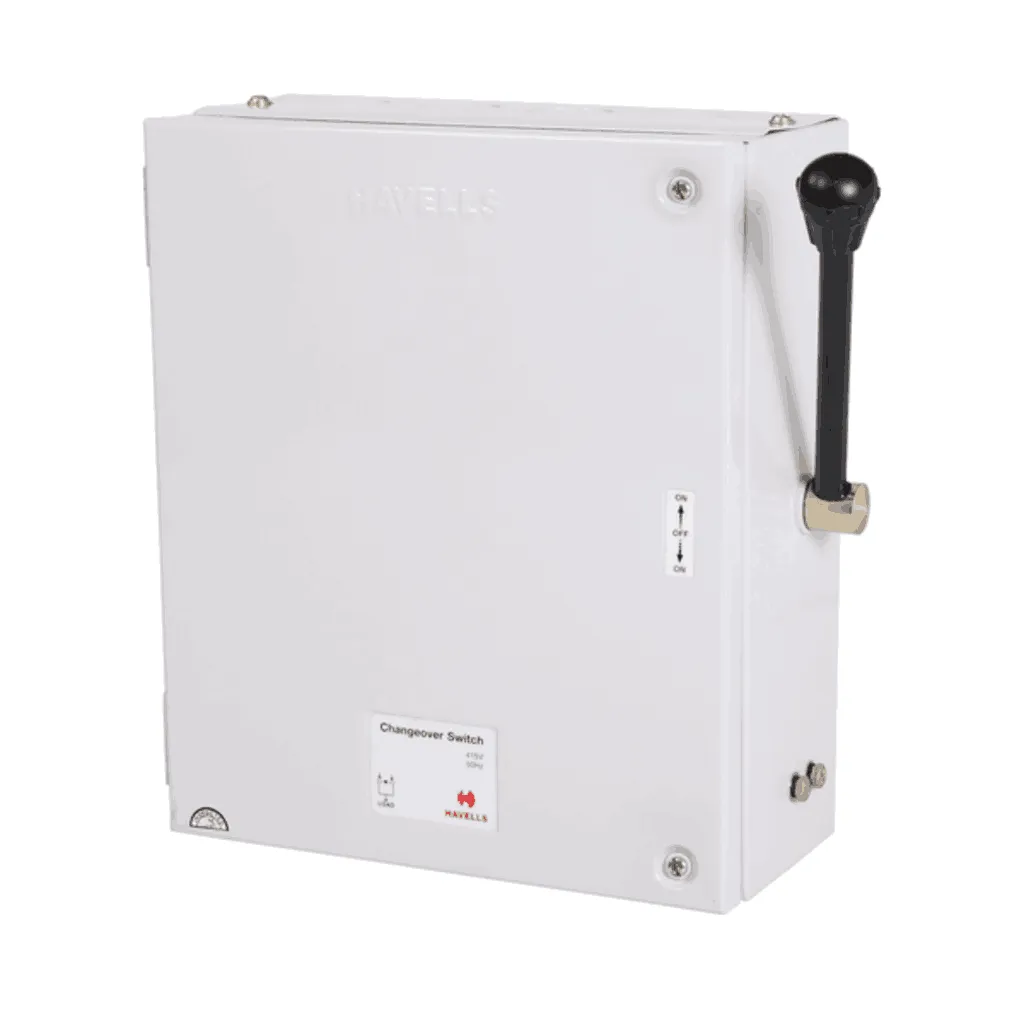

Product Description
Wide Range from 16A - 2000A
Offers widest Range of Operational Current depending on Load Requirement
Dual Mounting Facility
Suitable for individual mounting, inner mounting holes and mounting brackets provided in enclosures.
Facility of ONLoad Application
Suitable for On Load application upto 100
DETAILED FEATURES
Choice of Usage
Available in open execution / sheet steel enclosure
Sheet steel enclosure duly phosphatised and powder painted
Protects from rusting thereby lending longer life.
Termination suitable for Aluminum cables
Allows flexibility of Cable Choice since suitable for both Cu & Al Cable
Door interlocking facility
Enables safety during Operation / Non Operation of the Switch
Product Specificationss
TECHNICAL SPECIFICATION
Basic Features
Standard conformity: IS / IEC: 60947-1&3
Rated operational voltage: 240V (in Double Pole Version), 415V (in Three Pole & Four Pole Version)
Rating Range: 16A – 160A
No. of Poles: Four
Rating Amp. |
Cat No |
|
Four Pole |
16 |
IHBFFE0016 |
32 |
IHBFFE0032 |
63 |
IHBFFE0063 |
100 |
IHBFFE0100 |
